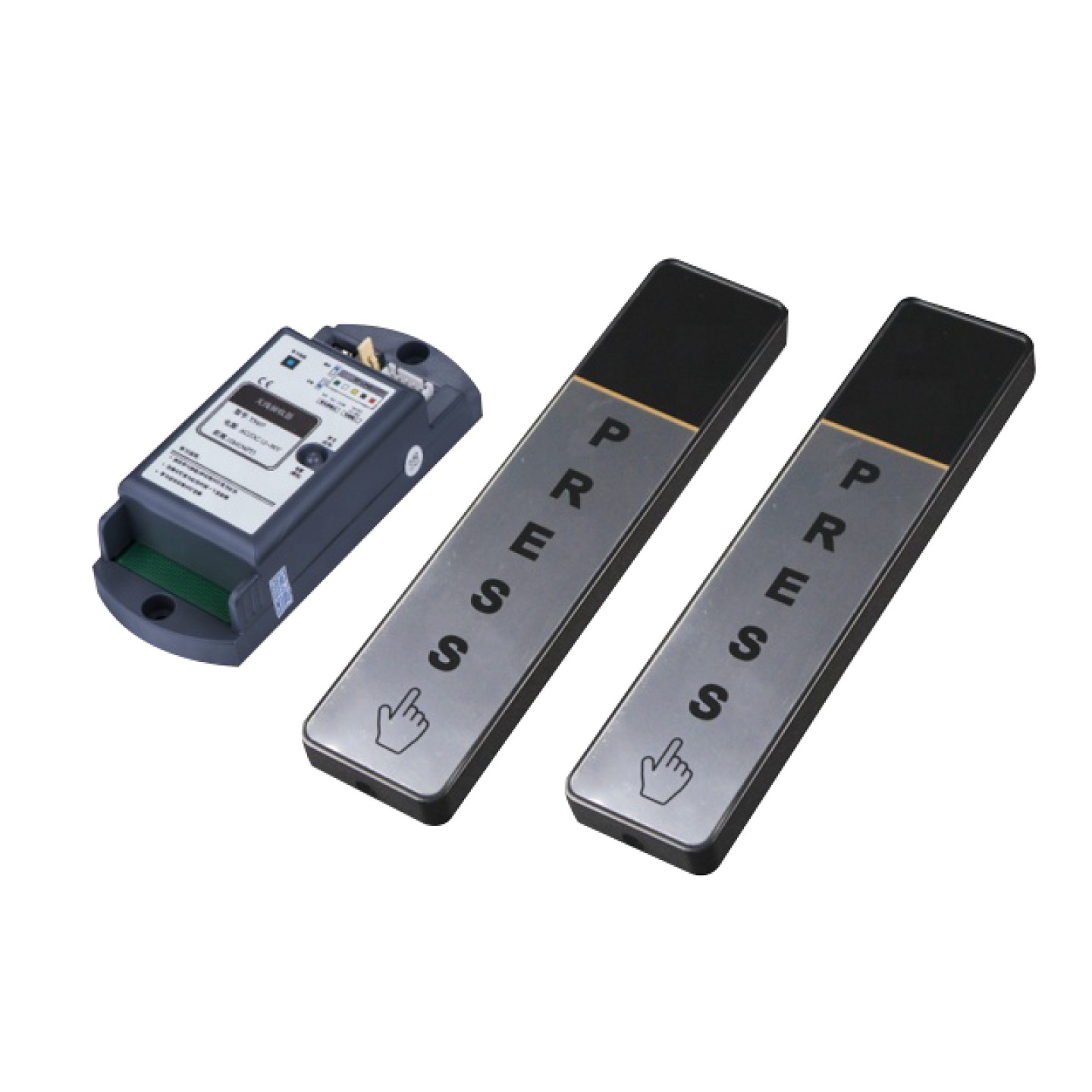

RG-AT-M017 : RANGER AUTO DOOR WIRELESS HAND TOUCH BUTTON ( 1 UNIT RECEIVER + 2 UNIT TRANSMITTER )
Login to see prices
Description
SpecificationsDownload
| Item | Description | |
|---|---|---|
| Wireless Receiver | ||
| Power Supply | AC/DC12~24V | |
| Static Current | 15mA | |
| Action Current | 80mA (DC12V Power) | |
| Relay contact capacity | 20A 14VDC | |
| Wireless Transmitter | ||
| Power Supply | 3V (2/pcs 1.5V AAA battery) | |
| Emission Current | 23mA | |
| Life of Battery | > 219000times | |
| Transmit Distance | >25M | |
| Operation Temperature | -42°C ~ 45°C | |
| Operation Humidity | 10~90% RH | |
| Dimension ( LxWxH Transmitter ) | 159 x 35 x 13mm | |
| Dimension ( LxWxH Wireless Receiver ) | 123 x 50 x 32mm | |
| Date | Title | Type | Download |
|---|---|---|---|
| 2018-10-01 | RG-AT-M017 Motor Product Catalogue |  |
